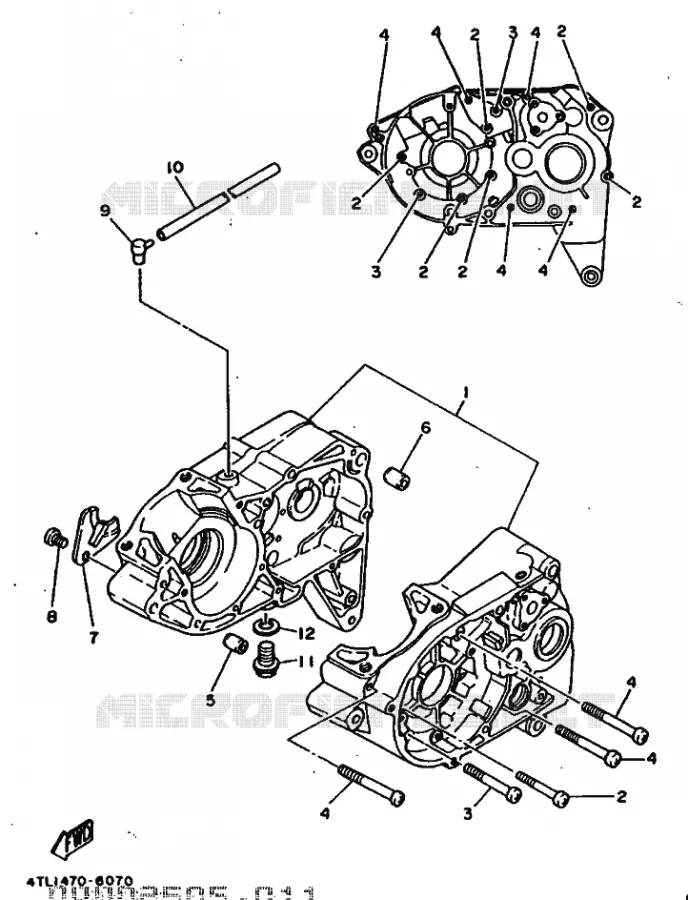

CRANKCASE FOR YAMAHA RX 1996

COVER - ENGINE 1

Item numbers

CARTER DE MOTEUR COMPLET

36LE51100000 36LE51100000

Not available

SCREW PAN HEAD

985800654500 985800654500

8,37 $

Unit Price

SCREW, PANHED (GC2)

985800655500 985800655500

8,45 $

Unit Price

SCREW PAN HEAD

985800656500 985800656500

11,77 $

Unit Price

PIN, DOWEL

995301001400 995301001400

6,72 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

SUPPORT

36LE51280000 36LE51280000

Not available

SCREW, PAN

985010801000

985070801000

2,23 $

Unit Price

RENIFLARD

36LE53710000 36LE53710000

Not available

HOSE(3XP)

904460722800

904460734900

6,09 $

Unit Price

PLUG STRAIGTSCREW 132153510000

903401200500 903401200500

9,22 $

Unit Price

GASKET (3JD1)

904301220700 904301220700

1,68 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Yamaha RX100 of 1996. Let us know if you have any questions.
